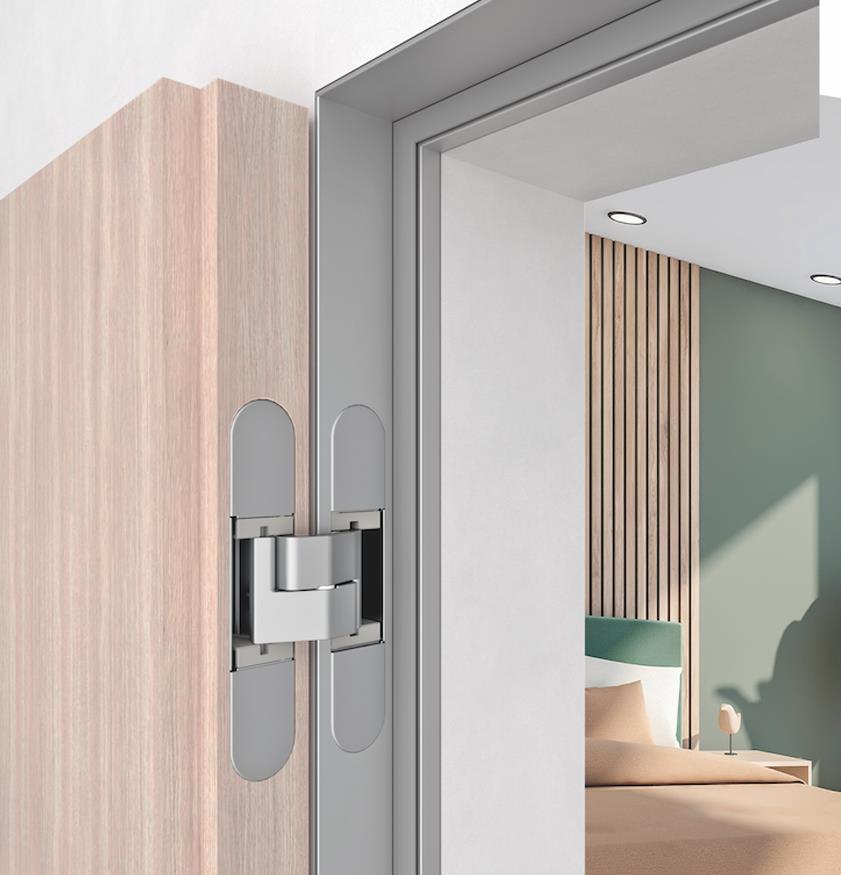

_Concealed hinge for flush doors, in wood or aluminium, for door with or without rebate and with depth of 21 mm on the doorframe.
Easy to install, completely invisible and ideal for aluminium doors for its small size.
_Hinge made with a robust structure in Zamak and aluminium covers, the flaps placed on the back of the covers are inserted into the appropriate grooves present in the hinge.
_Three independent adjustments: pressure ±1 mm; vertical ±2 mm; horizontal ±1,5 mm.
It is recommended to adjust one at a time using a 3 mm Allen key.
_Load up to 50 kg with two hinges and 60 kg with three hinges, for doors with a height of more than 1600 mm we suggest the use of three hinges to contain any deformation. It is suggested to use the flow rate diagram.

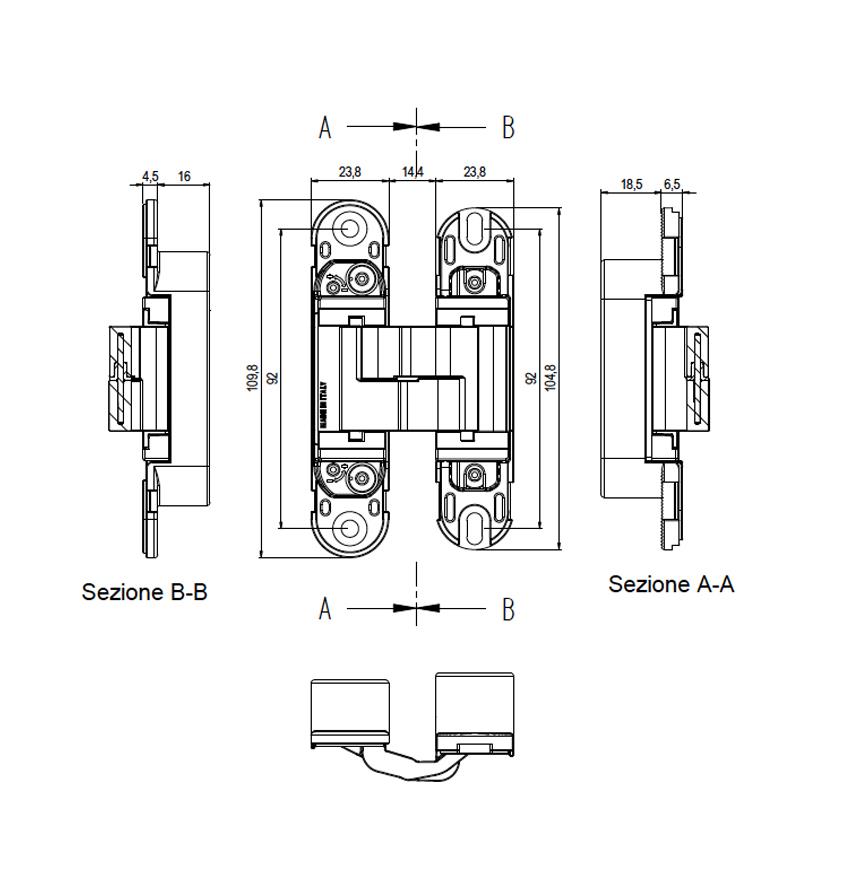

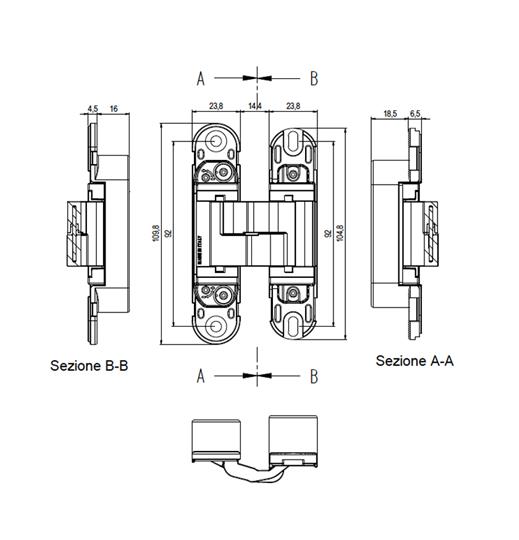

Mod. BS3.2
| Material | Finishing | Code | Description | Packaging |
|---|---|---|---|---|
| Zamak | BLACK | AHS320240K0 | HINGE | 12 pieces |
| Zamak | WHITE | AHS320240B0 | HINGE | 12 pieces |
| Zamak | GREY | AHS32024090 | HINGE | 12 pieces |
| Aluminium | BLACK | 4SS3A0000K7 | COVER | 12 set (48 pieces) |
| Aluminium | GREY | 4SS3A000097 | COVER | 12 set (48 pieces) |
| Aluminium | WHITE | 4SS3A0000B7 | COVER | 12 set (48 pieces) |
